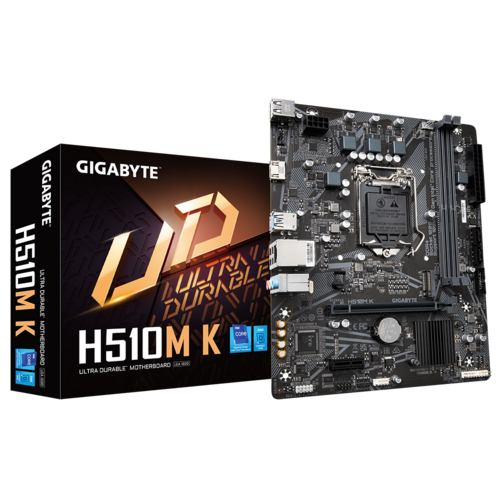

Mainboard Gigabyte H510M-K

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

H510M K

CPU hỗ trợ

Intel

Chipset

H510

RAM hỗ trợ

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

CPU:

1. 1 x PCI Express x16 slot:
   Supporting PCIe 4.0 and running at x16
   (PCIe 4.0 is only supported by 11th Generation processors.)

Chipset:

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ

Chipset:

1. 1 x M.2 connector:
   Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD
2. 2 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 2 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x serial port header
13. 1 x Clear CMOS jumper

USB

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN / Wireless

Realtek^® GbE LAN chip (1 Gbps/100 Mbps)
